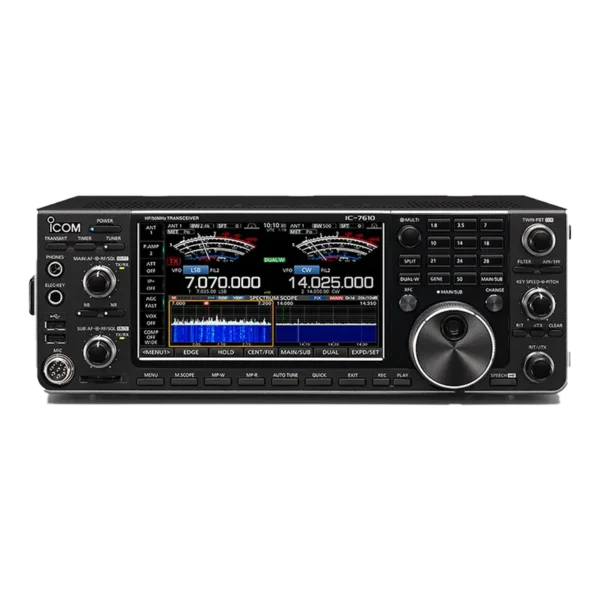

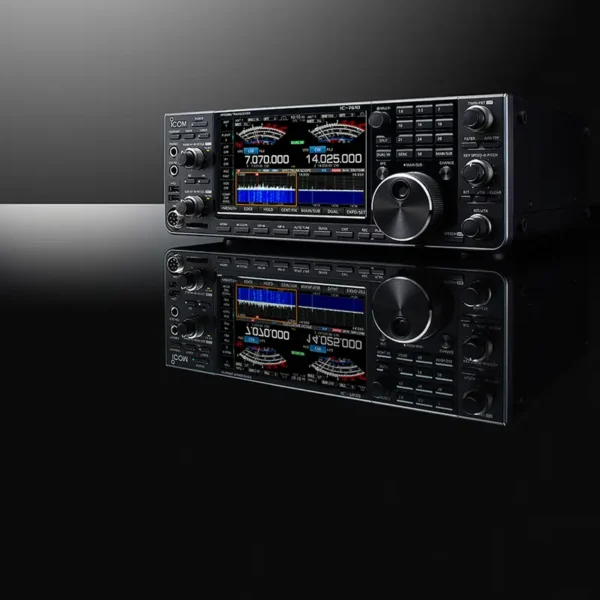

ICOM IC-7610 HF/50HMz Transceiver

Icom IC-7610 HF/50MHz SDR Base Transceiver

Dual Receiver SDR Powerhouse for Serious Operators

The Icom IC-7610 represents a new generation of HF transceivers, combining dual independent receivers, RF direct sampling technology, and exceptional dynamic range to deliver performance once only found in top-tier professional radios. Designed for the discerning amateur and commercial operator, the IC-7610 delivers world-class reception, advanced DSP processing, and intuitive control through a high-resolution color touchscreen.

Built on Icom’s cutting-edge SDR architecture, the IC-7610 provides unmatched receive clarity, real-time spectrum scope, and superior frequency stability. It’s the perfect blend of performance, precision, and durability — a true flagship for any radio station.

---

Key Features

Direct Sampling SDR Architecture

• RF signals are digitized directly from the antenna input, reducing distortion and improving signal accuracy.
• Exceptional dynamic range and ultra-low noise for crystal-clear reception.

Dual Independent Receivers

• Simultaneously monitor two different bands and modes.
• Perfect for contesting, DXing, and emergency communications.

Vast Frequency Coverage

• Receive: 0.030–60.00 MHz
• Transmit (USA): 1.8–54 MHz across HF and 6m amateur bands.
• Transmit (EUR): Includes additional low-frequency allocations (0.1357–0.1378 MHz).

Powerful Output

• 100W (SSB/CW/FM/RTTY/PSK), 25W (AM) for reliable communication in all conditions.

Intuitive 7-inch Color Touchscreen Display

• Large TFT LCD with spectrum scope and waterfall display.
• Real-time signal visualization for both main and sub bands.

Built-In Automatic Antenna Tuner

• Tunes antennas across 1.9–50 MHz bands in seconds.
• Handles impedance from 16.7Ω to 150Ω for broad compatibility.

Superior Audio and Noise Reduction

• Digital P.S.N. modulation for cleaner transmission.
• Advanced noise reduction, automatic notch filter, and twin peak filters for CW and RTTY.

Connectivity & Features

• USB interface for digital modes and remote control.
• LAN port for network operation and remote monitoring.
• SD card slot for recording and firmware updates.
• Built-in voice and CW keyer.

---

Technical Specifications

Category	Specification
Receive Coverage (USA)	0.030–60.00 MHz
Transmit Coverage (USA)	1.8–54 MHz
Transmit Coverage (EUR)	0.1357–0.1378, 1.810–52 MHz
Modes	USB, LSB, CW, RTTY, PSK31/63, AM, FM
Channels	101 (99 regular, 2 scan edges)
Output Power	1–100W (SSB/CW/FM/RTTY/PSK), 1–25W (AM)
Receiver System	Direct Sampling Superheterodyne
Intermediate Frequency	12 kHz
Frequency Stability	±0.5 ppm

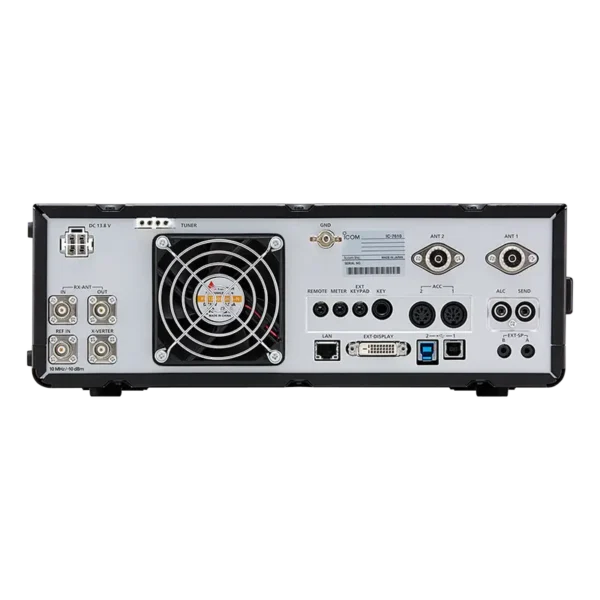

Antenna Connectors	2 × SO-239 (Main/Sub), 1 × BNC (RX antenna in/out)
Power Supply	13.8V DC ±15%
Current Drain	TX: 23A (100W), RX: 3.0–3.5A
Audio Output Power	2.0W (10% distortion, 8Ω load)
Frequency Resolution	1 Hz (fine)
Operating Temperature	0°C to +50°C (32°F to 122°F)
Dimensions (W×H×D)	340×118×277 mm
Weight	8.5 kg (18.7 lb)

---

Tuner Specifications

Parameter	Details
Frequency Range	1.9–50 MHz
Matching Impedance Range	16.7Ω–150Ω unbalanced
Tuning Accuracy	VSWR ≤ 1.5:1
Tuning Time	2–3 seconds (max 15 seconds)

---

Receiver Performance

Parameter	HF (1.8–29.999 MHz)	50 MHz
SSB Sensitivity (10 dB S/N)	0.16 µV	0.13 µV
AM Sensitivity (10 dB S/N)	2.0 µV	1.0 µV
FM Sensitivity (12 dB SINAD)	0.5 µV	0.32 µV
Selectivity (SSB)	2.4 kHz/-6 dB, 3.6 kHz/-60 dB
Spurious/Imaging Rejection	70 dB or more

---

Supplied Accessories

• HM-219 Hand Microphone
• DC Power Cable
• Fuses and Plugs
  (Antenna sold separately)

---

Warranty

• 2-Year Manufacturer’s Warranty on transceiver
• 1-Year Warranty on accessories

---
