Icom IC-7300 HF/50MHz Base Transceiver

Revolutionary SDR Performance in a Compact Design

The Icom IC-7300 redefines what’s possible in an HF/50MHz base transceiver. Featuring direct-sampling SDR technology, this compact powerhouse delivers exceptional receive performance, precise frequency stability, and an intuitive color touchscreen interface. Whether you’re a seasoned DX operator or a new enthusiast, the IC-7300 provides cutting-edge features designed for serious HF operation.

With its real-time spectrum scope, RF direct sampling receiver, and built-in automatic antenna tuner, the IC-7300 is engineered to provide crystal-clear communication and outstanding user control — all within a rugged and elegant chassis.

---

Key Features

Direct Sampling SDR Technology

• Eliminates traditional superheterodyne distortion for cleaner, more accurate signal processing.
• Ensures crystal-clear audio and improved dynamic range across all bands.

Powerful Output and Coverage

• Frequency Coverage: 0.030–74.800 MHz (Receive), 1.8–54 MHz (Transmit).
• Output Power: 100W (SSB/CW/FM/RTTY) and 25W (AM).
• Guaranteed range for 0.5–29.999 MHz and 50–54 MHz.

Wide Mode Support

• Operates in SSB, CW, RTTY, AM, and FM modes.
• Flexible operation for both analog and digital users.

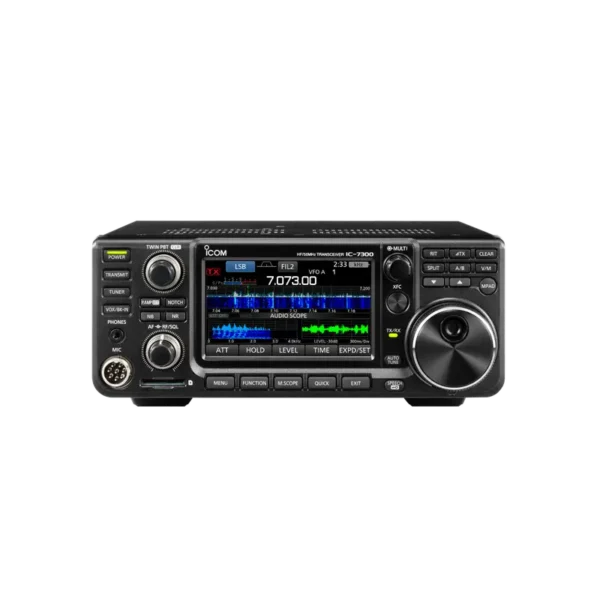

Intuitive Touchscreen Interface

• 4.3-inch color TFT display with real-time spectrum scope.
• Touch operation simplifies navigation, tuning, and menu access.
• Waterfall display visualizes signal activity across bands.

Built-In Automatic Antenna Tuner

• Matches impedance from 16.7Ω to 150Ω for optimal performance.
• Tunes most antennas within 2–3 seconds, even under challenging conditions.

Exceptional Receiver Performance

• RF Direct Sampling ensures low noise and high sensitivity.
• Selectivity (SSB): 2.4 kHz/-6 dB, 3.4 kHz/-40 dB.
• Sensitivity: 0.16 µV (HF), 0.13 µV (50 MHz).
• Audio Output: Over 2.5W with clear, distortion-free sound.

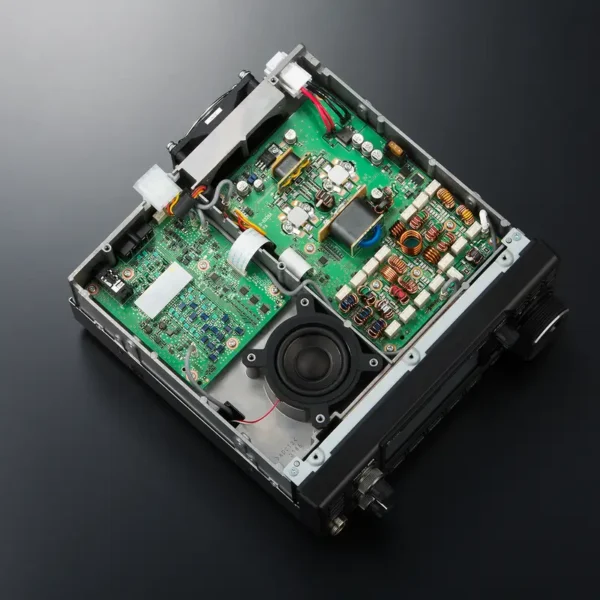

Rugged and Reliable Construction

• Solid metal chassis ensures long-term durability.
• Built for field, base, and emergency operations.
• Operates reliably from –10°C to +60°C (14°F to 140°F).

Advanced Features

• 101 channels (99 regular + 2 scan edges).
• Digital signal processing (DSP) for real-time filtering.
• USB connectivity for PC control and digital mode operation.
• CW auto-tuning and voice recording functions.

---

Technical Specifications

Category	Specification
Receiver Coverage	0.030–74.800 MHz (Guaranteed: 0.5–29.999, 50–54 MHz)
Transmit Frequency Range	1.8–54 MHz
Modes	SSB, CW, RTTY, AM, FM
Output Power	2–100W (SSB/CW/FM/RTTY), 1–25W (AM)
Receiver System	Direct Sampling Superheterodyne
Frequency Stability	±0.5 ppm
Selectivity (SSB)	2.4 kHz/-6 dB; 3.4 kHz/-40 dB
Audio Output Power	2.5W (10% distortion, 8Ω load)

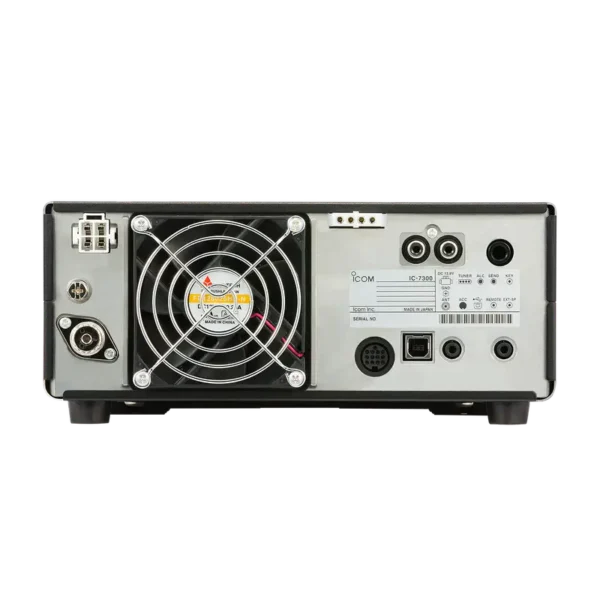

Antenna Connector	SO-239 (50Ω)
Power Supply	13.8V DC ±15%
Current Drain	TX: 21A (100W), RX: 0.9–1.25A
Operating Temperature	–10°C to +60°C
Dimensions (W×H×D)	240×94×238 mm
Weight	4.2 kg (9.3 lb)

---

Tuner Specifications

Parameter	Details
Frequency Range	1.9–50 MHz
Matching Impedance Range	16.7Ω–150Ω (VSWR ≤ 1:3)
Tuning Accuracy	VSWR 1:1.5 or less
Tuning Time	2–3 seconds (max 15 seconds)

---

Package Includes

• IC-7300 Transceiver
• HM-219 Hand Microphone
• DC Power Cable (OPC-2477)
• Mounting Hardware
• User Manual

(Antenna sold separately.)

---

Warranty

• 3-Year Manufacturer’s Warranty on the radio
• 1-Year Warranty on accessories

---
