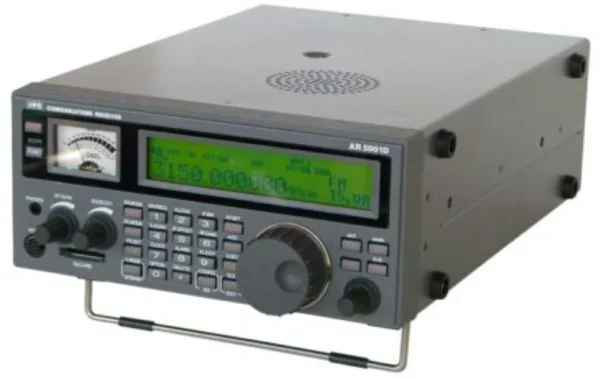

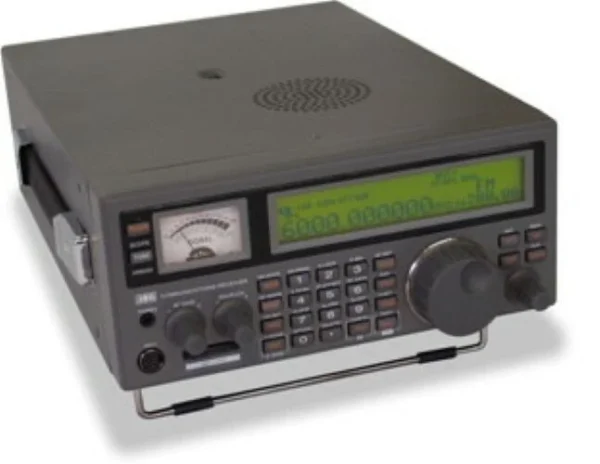

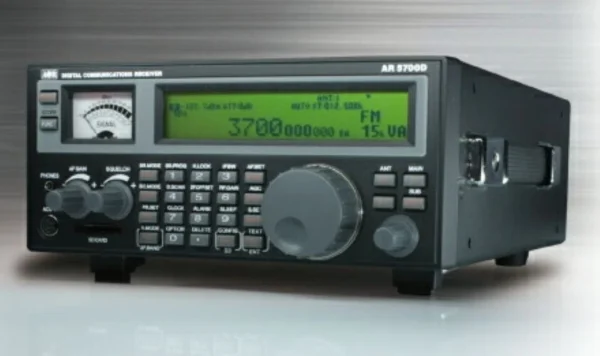

AR5700D Digital Communications Receiver

AOR AR5700D Digital Communications Receiver – 9kHz to 3.7GHz Advanced Signal Intelligence Solution

Overview

The AOR AR5700D Digital Communications Receiver stands at the forefront of professional radio monitoring technology.
Covering a wide frequency range from 9 kHz to 3.7 GHz, this state-of-the-art receiver delivers unparalleled signal detection, digital voice decoding, I/Q recording, and wideband monitoring capabilities for commercial, government, and intelligence applications.

AOR has enhanced this receiver family including the AR5700D, AR2300IQ, AR5001D (with IQ5001), and AR6000 (with IQ5001) to include advanced GSSI user group filtering for TETRA trunked networks.
This breakthrough feature allows operators to import, bookmark, and identify TETRA network user groups, and selectively decode their voice communications—a world first in communications receivers.

---

Unmatched Digital Decoding Capabilities

The AR5700D is designed for today’s complex radio environments, supporting both digital and analog modulation formats across multiple standards.

It decodes a wide array of digital communication protocols, including:

• TETRA (Direct mode and Trunked mode with GSSI filtering)
• DMR (Tier 1 & 2)
• NXDN (with 15-bit descrambling)
• D-STAR
• dPMR
• APCO P25 Phase 1
• YAESU C4FM, ALINCO EJ-47, and D-CR

In addition, it receives traditional analog modes such as FM, AM, Synchronous AM, FM-Stereo, USB, LSB, CW, Analog I/Q, and FM video.
Whether monitoring trunked public safety channels or conventional analog transmissions, the AR5700D provides total decoding flexibility.

---

Powerful Digital Architecture

At the core of the AR5700D lies an extraordinary configuration of high-performance processors and FPGAs that deliver lightning-fast signal processing and exceptional demodulation accuracy.

• Four RENESAS SH2 CPUs
• Three Analog Devices Blackfin DSPs
• One ADSP-2185 DSP
• Four Intel (Altera) Cyclone FPGAs

This powerful architecture ensures smooth operation, low latency, and precise signal demodulation across the entire frequency spectrum.

---

Performance and Flexibility

The AR5700D offers professional-grade functionality with intuitive control and precision engineering:

• Frequency range: 9 kHz – 3.7 GHz
• Frequency stability: ±0.1 ppm (standard), ±0.01 ppm with optional GPS module
• Tuning resolution: 1 Hz to 999.999 kHz
• Five independent VFOs (A–E)
• 2,000 memory channels (40 banks × 50 channels)
• Adjustable scanning speed up to 100 channels/sec
• Analog video demodulation and real-time FFT “Cyber Search” spectrum analysis

This level of control allows professional operators to monitor, analyze, and record complex digital environments with precision and speed.

---

Digital I/Q Recording and Playback

The built-in digital I/Q recorder enables seamless baseband signal capture for playback and analysis—critical for post-event review, signal intelligence, and training.
Users can also stream I/Q data for remote decoding or advanced waveform processing via PC software, offering a complete digital signal management solution.

---

Construction and Design

• Power Supply: 10.7V–16V DC (2A @ 12V)
• Audio Output: >1.5W into 8Ω
• Standby Current: Approx. 200 mA; Max Audio: Approx. 1.8A
• Dimensions: 304 mm (D) × 220 mm (W) × 97 mm (H)
• Weight: Approx. 5 kg
  Built with industrial-grade components and a rugged metal chassis, the AR5700D ensures reliable operation in mission-critical environments.

---

Applications

The AR5700D is ideal for:

• Government and defense monitoring
• Public safety and emergency services
• Spectrum management and research labs
• Broadcast and telecommunications analysis
• Advanced amateur radio enthusiasts

Its high-stability design, multi-mode decoding, and digital recording make it the receiver of choice for users requiring accurate, long-term signal surveillance.

---

Key Specifications

Feature	Specification
Frequency Range	9 kHz – 3.7 GHz
Frequency Stability	0.1 ppm (standard) / 0.01 ppm with GPS
Tuning Resolution	1 Hz – 999.999 kHz
VFOs	5 (A–E)
Memory Channels	2000 (40 banks × 50 channels)
Scanning Speed	100 channels/sec (analog)
Audio Output	>1.5 W (8Ω load)
Operating Temperature	0°C – +50°C
Modes Supported	TETRA, DMR, NXDN, P25, D-STAR, dPMR, FM, AM, USB, LSB, CW, Analog I/Q, FM Video
Dimensions / Weight	304×220×97 mm / Approx. 5 kg
Power Requirements	10.7V–16V DC, 2.0A @ 12V
Build	Metal chassis, minus grounding

---

Why Choose the AOR AR5700D

With its unique TETRA GSSI filtering, multi-protocol decoding, and industry-leading digital architecture, the AOR AR5700D is the ultimate receiver for professionals who demand precision, versatility, and control.
From law enforcement to intelligence and technical research, it delivers real-time insight into today’s diverse communication environments.

---
